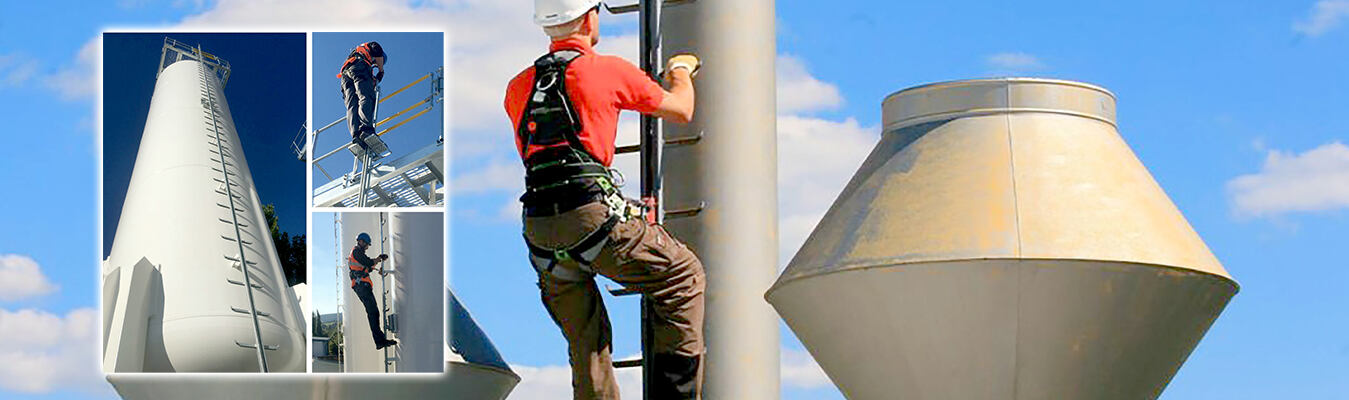

Product Image

Flowlok Ladder System

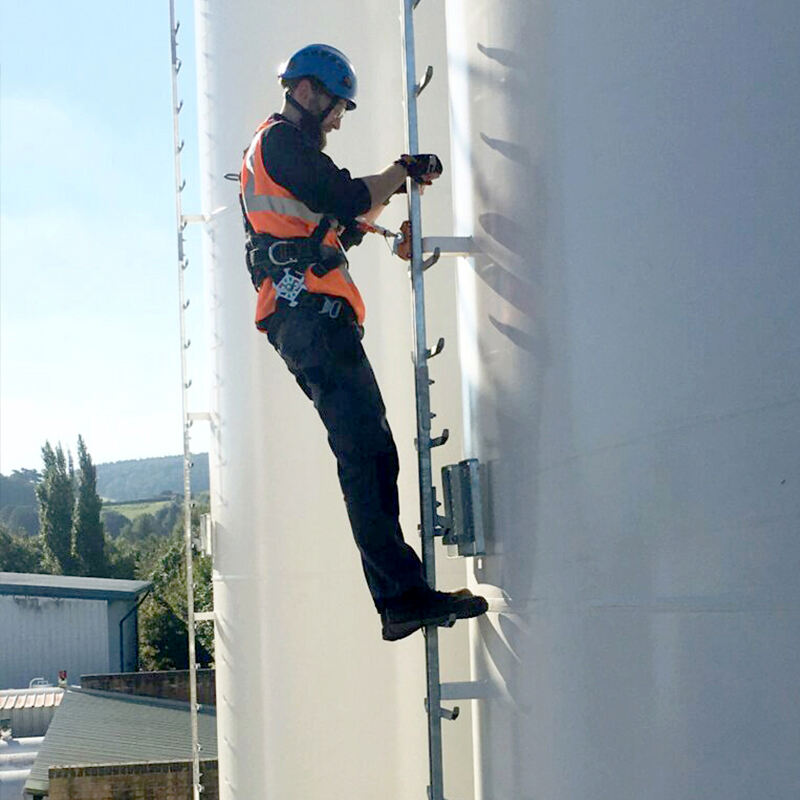

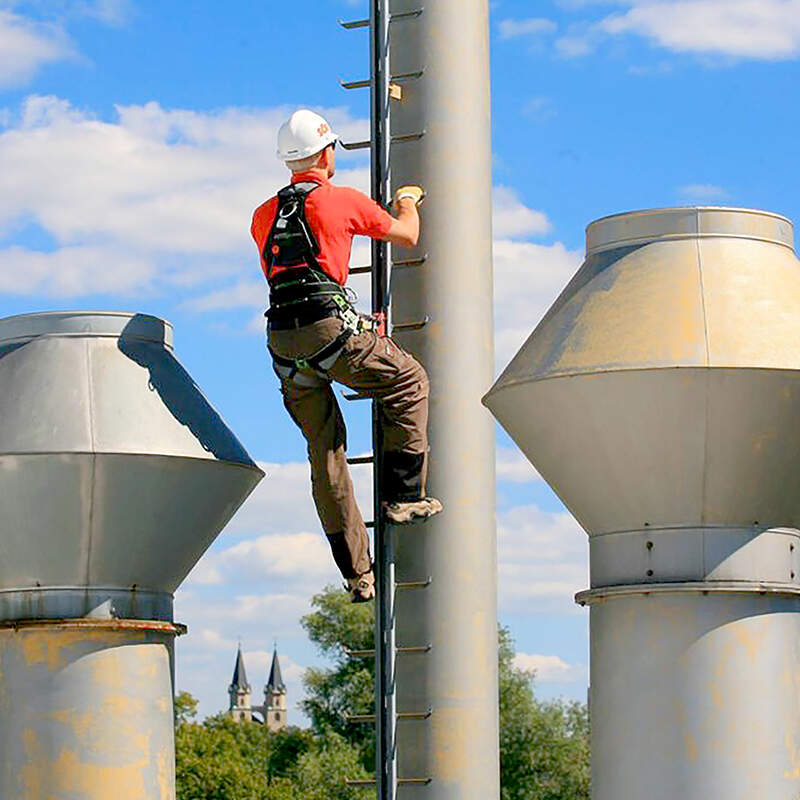

TsaF’s FlowLok Vertical Height Access System (VHAS) Ladder System provides access to the roof, where there are no pre-fabricated ladders or climbing structures available. It can be attached to various buildings with the use of different fasteners, making it an ideal solution across industries such as Power Transmission, Wind, Telecommunications, Storage Bins and Silos, and more.

In the event of a fall, the trolley immediately locks over the rail, thereby arresting the fall. When not in use, the unidirectional locking system of the trolleys does not allow it to fall freely down the guide rail.

The system includes fall protection ladders, guide rails, and self-guiding fall arresters. The FlowLok VHAS adheres to world-class HSE standards. Ancillary safety devices that are uniquely compatible with the fall protection ladder ensure secure access for the operator. All systems are installed by trained specialists to ensure safety and productivity at the site.

Specifications Features Benefits Downloads

Engineering	Custom engineered
Material	Galvanized steel
Thickness	Minimum 70 microns

Made of high-grade galvanized steel

Lightweight and uses minimal components
Lesser surface area ensures mitigation of wind load
Simple, cost-effective, and versatile
Ribbed rungs prevent slippage welded at 279 mm c/c
