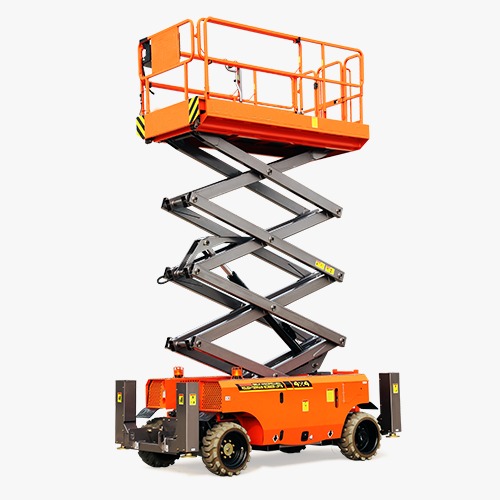

SCISSOR LIFT ELECTRIC 15.70 Mtr
Model No : JCPT1612AC
With a working height of 15.70m, the self-propelled electric scissor lift delivers safety, efficiency and productivity
at the worksite.
The battery-driven
scissor lift is equipped with a fully sealed AC system for enhanced drive
and lift. Advanced features such as an automatic pothole protection system make
the lift safer and reliable, while the unidirectional extension platform can
reach the operation point with swiftness.
The manlift equipment
is also equipped with an automatic display for fault codes for easy and
hassle-free maintenance. The elevated
work platform offers safer, higher levels of water and dust resistance with
a lower noise level and non-pollution leading to a productive and protective
environment that can match applications across various industries.
Scissor aerial lifts
are available for rent and sale across India. Get in touch now.
| Model No | JCPT1612AC |
|---|---|
| Working Height | 15.70 |
| Power Type | Electric |
| Platform Height (m) | 13.70 |
| Platform Size (LxW) | 2.64x1.1 |
| Platform Extension (in) | 0.90 |
| Machine Weight (kg) | 3360 |
| Overall height (Rails up) (m) | 2.62 |
| Overall height (Rails down) (m) | 2.09 |
| Ground clearance (m) | 0.10 |
| SWL (Kg) | 250 |
| Wheelbase (m) | 2.22 |
| Gradeability | 25 |
| Max Lifting Height (m) | 0 |
| Max Lifting Capacity (Kg) | 0 |
| No. | Name |
|---|---|
| 1 | Painting |
| 2 | Indoor |
| 3 | Outdoor |
| 4 | Maintenance |
| 5 | Repair |
| 6 | Industrial Maintenance |
