SELF PROPELLED ELECTRIC - DINGLI -JCPT0808HA
Model No : JCPT0808HA

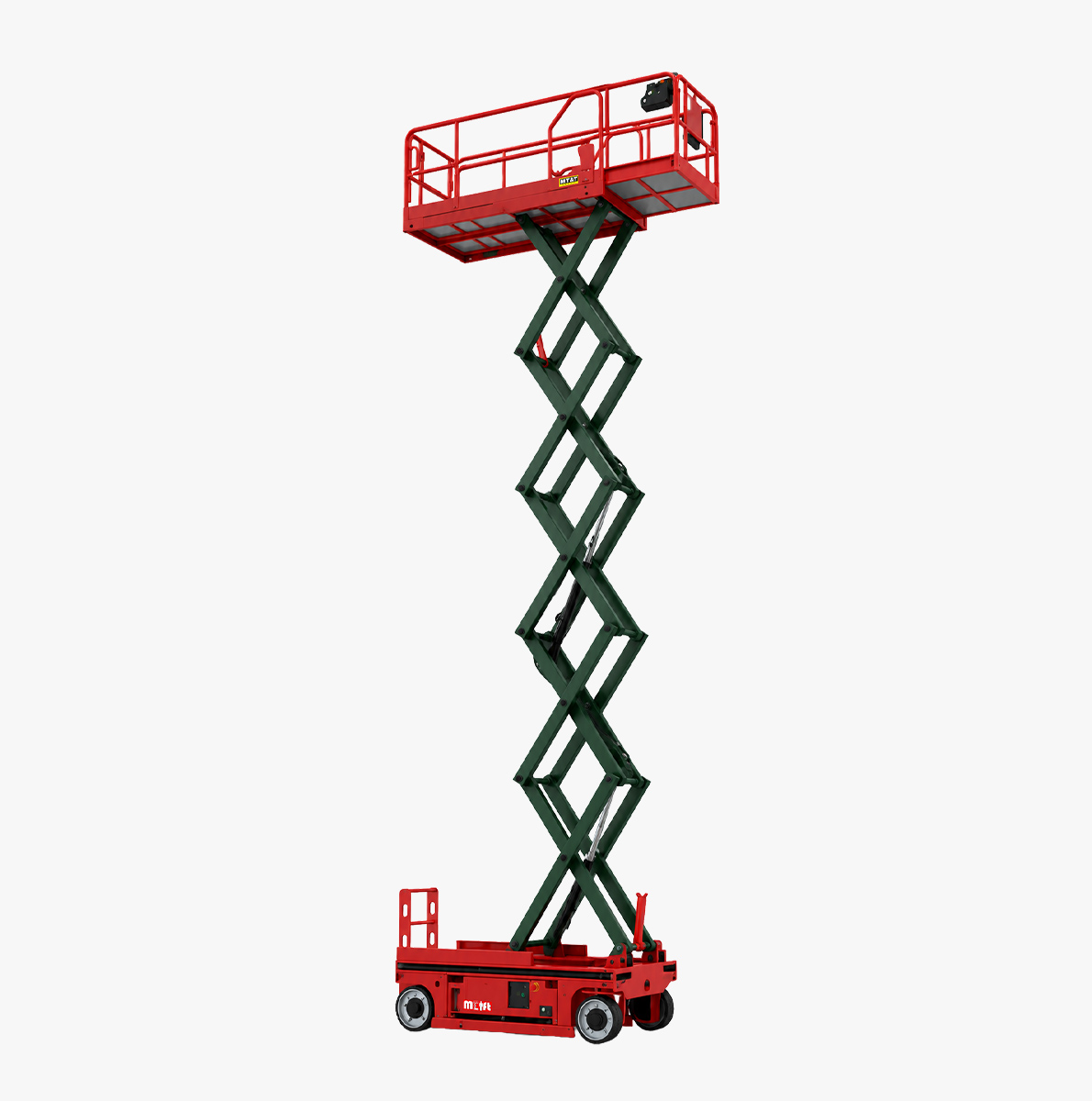

The self-propelled electric
scissor lift delivers safety, efficiency and productivity at the elevated work site.
The battery-driven hydraulic scissor lift is equipped with a fully sealed AC system for enhanced drive and lift. Advanced features such as an automatic pothole protection system make the lift safer and reliable, while the unidirectional extension platform can reach the operation point with swiftness.
The scissor platform is also equipped with an automatic display for fault codes for easy and hassle-free maintenance. The man lift equipment offers safer, higher levels of water and dust resistance with a lower noise level and non-pollution leading to a productive and protective environment that can match applications across various industries.
The portable scissor lift is available for rent and sale across India. Enquire now.
| Model No | JCPT0808HA |
|---|---|
| Working Height | 8 |
| Power Type | Electric |
| Platform Height (m) | 6 |
| Platform Size (LxW) | 2.27x0.8 |
| Platform Extension (in) | 0.90 |
| Machine Weight (kg) | 2120 |
| Overall height (Rails up) (m) | 2.23 |
| Overall height (Rails down) (m) | 1.87 |
| Ground clearance (m) | 0.10 |
| SWL (Kg) | 380 |
| Wheelbase (m) | 1.87 |
| Gradeability | 25 |
| Max Lifting Height (m) | 0 |
| Max Lifting Capacity (Kg) | 0 |
- Proportional Joystick Controls
- Self-Locking Gates
- One-Way Platform Extension Deck
- Drivable At Full Height
- Non-Marking Tires
- 4×2 Drive
- Four-Wheel Braking
- Emergency Descent System
- Tubing Explosion-Proof System
- Onboard Fault Diagnostic System
- Tilt Alarm
- Motion Alarm
- Horn
- Hour Meter
- Safety Arm For Troubleshooting
- Standard Transport Forklift Holes
- Charging Protection System
- Flashing LED Beacon
- Foldable Guard Rails
- Automatic Pothole Protection
- Drive Enable
- Automatic One-Way Platform Extension Deck
- Manual Brake Release
- Lanyard Attachment Point
- Tie-Down And Lifting Points
- Platform Load Sense System
| No. | Name |
|---|---|
| 1 | Painting |
| 2 | Indoor |
| 3 | Outdoor |
| 4 | Maintenance |
| 5 | Repair |
| 6 | Industrial Maintenance |
