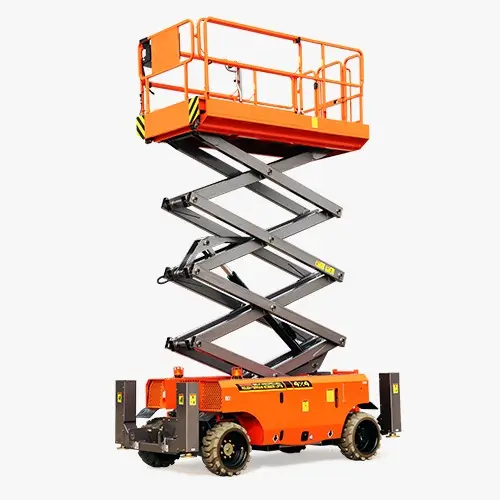

SELF-PROPELLED RT ELECTRIC-DINGLI-JCPT2825DC
Model No : JCPT2825DC
The compact self-propelled electric scissor lift is suitable for rough terrain applications
in construction, industrial and commercial tasks. The elevated platform is equipped with outriggers for additional
support on rough and uneven terrains. It extends unidirectionally to access
more working space increasing efficiency at the worksite.
JCPT2825DC is designed to increase efficiency at the worksite with the ability to
navigate and extend the platform for a larger working space. The scissor lift platform is further
equipped with smart devices such as integration with a one-touch levelling
function, button switch, key switch, emergency stop, buzzer, touch display
screen, automatic pothole protection and more.
| Model No | JCPT2825DC |
|---|---|
| Working Height | 28 |
| Power Type | Electric |
| Platform Height (m) bhhjkk | 26 |
| Platform Size (LxW) | 5.48x2.4 |
| Platform Extension (in) | 2.1 |
| Machine Weight (kg) | 13750 |
| Overall height (Rails up) (m) | 4.13 |
| Overall height (Rails down) (m) | 3.19 |
| Ground clearance (m) | 0.23 |
| SWL (Kg) | 1000 |
| Wheelbase (m) | 4.10 |
| Gradeability | 30 |
| Max Lifting Height (m) | 0 |
| Max Lifting Capacity (Kg) | 0 |
- Proportional Joystick Controls
- Self-Locking Gates
- Charging Indicator
- 4×4 Drive
- 4×4 Steer
- Four-Wheel Braking
- Self-Weight Lowering System
- Tubing Explosion-Proof System
- Onboard Fault Diagnostic System
- Tilt Alarm
- Motion Alarm
- Horn
- Hour Meter
- Charging Protection System
- Flashing LED Beacon
- Foldable Guard Rails
- Drive Enable
- Automatic One-Way Platform Extension Deck
- Manual Brake Release
- Lanyard Attachment Point
- Tie-Down And Lifting Points
- Automatic Leveling Hydraulic Outriggers
- Emergency Pump
- Emergency Stop Button
- Platform Load Sense System
- Drivable At Full Height
| No. | Name |
|---|---|
| 1 | Painting |
| 2 | Outdoor |
| 3 | Maintenance |
| 4 | Repair |
| 5 | Industrial Maintenance |
